Preset Valve For Flowmeter

Name: Preset Valve For Flowmeter
Brand: MARS PRODUCTS & SERVICES
Price: 45000.0 INR
Availability: InStock

Price 45000.0 INR/ Liter

Get a Price/Quote

MOQ : 1 Liter

Preset Valve For Flowmeter Specification

Operating Temperature
-20C to +70C

Color
Blue/Grey

Sensor Type
Mechanical

Pressure Range
Max 10 bar (varies by model)

Response Time
Immediate (Mechanical)

Protection
Weatherproof, IP54

Equipment Type
Preset Valve for Mechanical Flowmeter

Humidity %
95% RH

Connecting Type
Flanged/Threaded

Connectivity Type
Mechanical or optional pulse output

Load Capacity
Suitable for heavy-duty industrial flow measurement

Temperature Range
-20C to +70C

Measuring Units
Liters (L), Gallons (G)

Application Media
Oil, Diesel, Petroleum, Other Non-corrosive Liquids

Output
Mechanical Indication/Optional Electrical Pulse

Length
According to installation specification

Housing Material
Cast Iron/Aluminum

Measurement Range
Depends on model and application

Flow Rate
100 - 40,000 LPH (varies by model)

Language
English Display

Process Connection
Flanged/Threaded

Capacity
High capacity, industrial use

Sensitivity
High (for flow cutoff at preset)

Connector
Flange or threaded options

Velocity Range
As per flowmeter spec

Dimension (L*W*H)
Varies by model (approx. 420mm x 320mm x 300mm)

Storage Temperature
-30C to +80C

Stability
High mechanical stability

Model
Preset Valve compatible with Mechanical Flowmeter

Resolution
Mechanical Counter: 1 Liter increment

Signal Type
Mechanical/Optional Electrical Pulse

Cut Size
Customizable as per line size

Diameter
2 to 4 (customizable)

Mounting
Flange/Threaded

Input
Mechanical, via process pipeline

Material
Cast Iron/Aluminum alloy body

Power Supply
Manual/No power supply required

Accuracy
0.1% of reading

Display Type

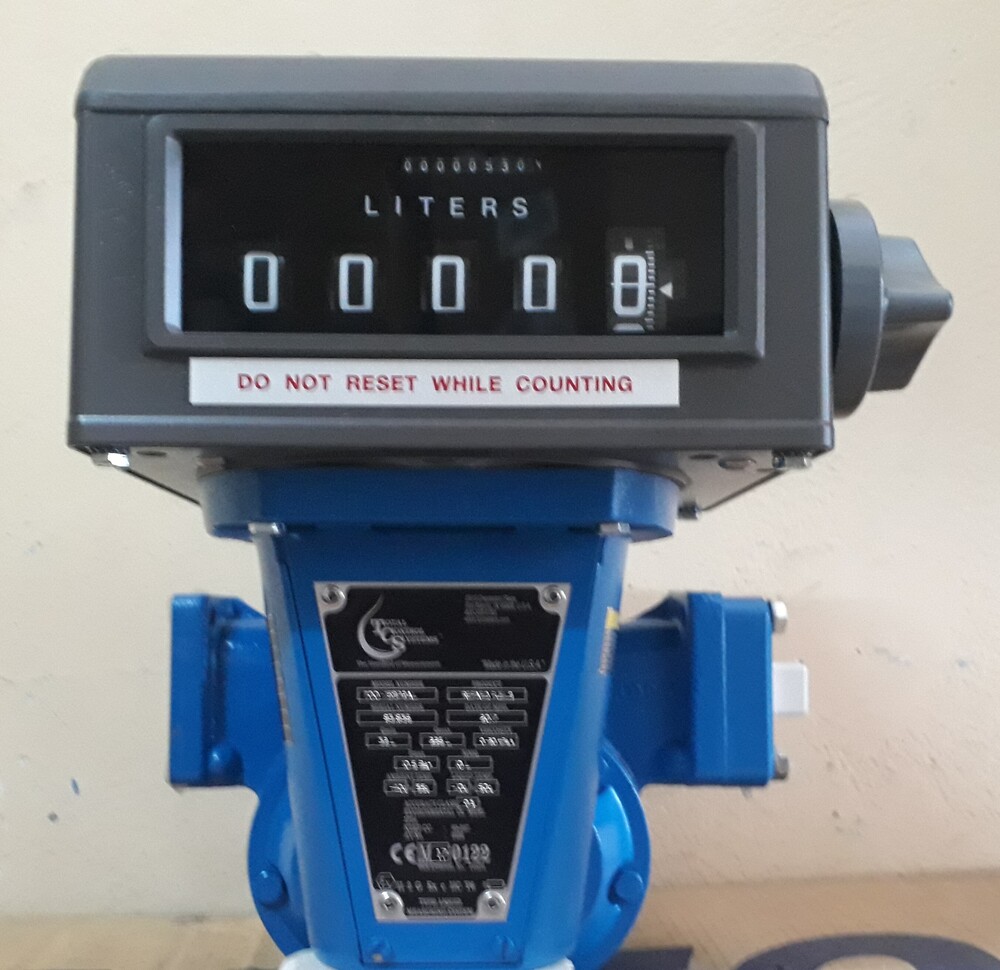

Mechanical Counter Display

Range
100 - 40,000 LPH (varies by model)

Seals Material
Nitrile/EPDM (as specified)

Application Industry
Oil terminals, Petroleum, Transport depots, Industrial liquid transfer

Automation Compatibility
Optional electric actuator interface

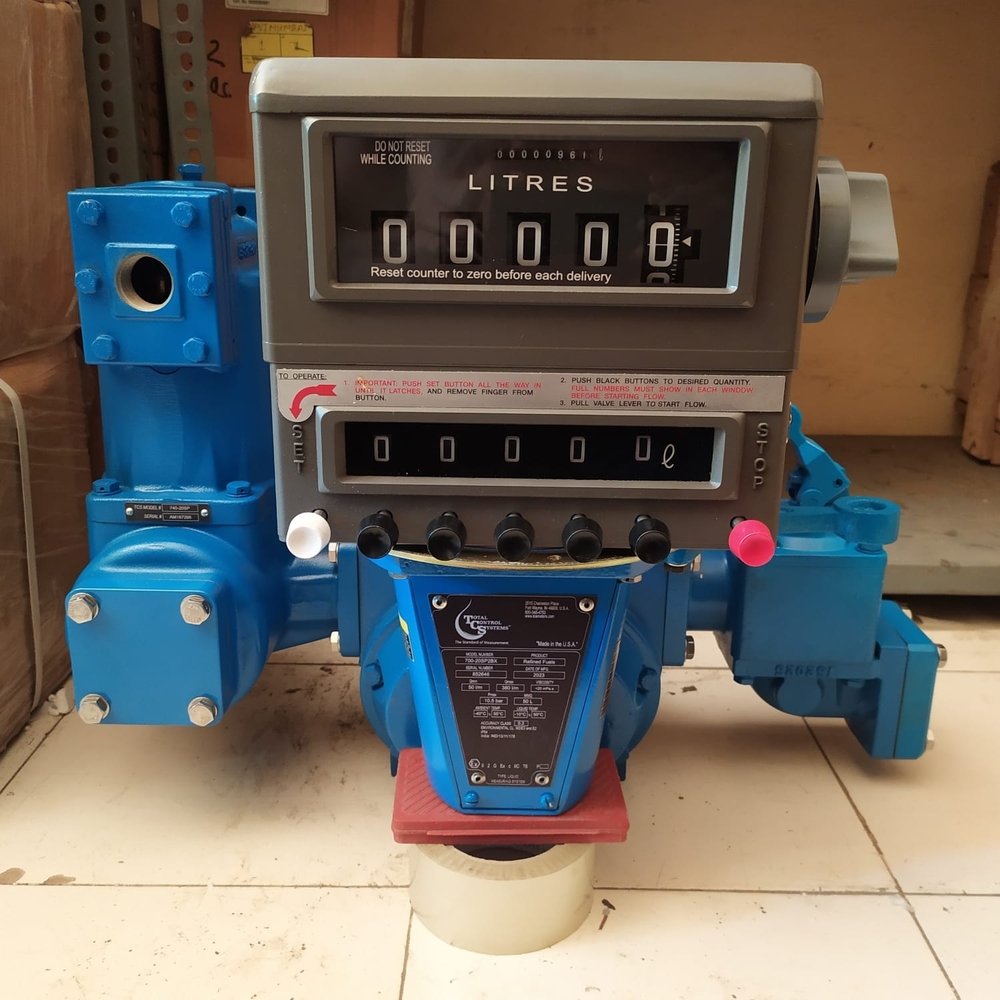

Preset Function
Programmable shut-off at selected volume

Compliance
Meets industrial safety and metrology standards

Valve Type
Preset Shut-off Valve

Maintenance
Low, periodic check recommended

Service Life
>5 years (with routine maintenance)

Operation
Manual or automatic cutoff

Flow Direction
Bidirectional

About Preset Valve For Flowmeter

A preset valve flowmeter is an integrated system comprising a flow meter (usually positive displacement) and a specialized valve, designed to automatically measure and control the transfer of a specific, pre-determined quantity of liquid.

Reliable and Accurate Flow Control

This preset valve integrates seamlessly with mechanical flowmeters to deliver precise shut-off at programmable volumes. Its high accuracy (0.1% of reading) and mechanical counter indication support a range of flow rates, making it essential for safe and efficient fluid handling in oil terminals, depots, and transport setups.

Multiple Operation Modes

The valve offers both manual and automatic cutoff options, adapting to varying operational needs. When paired with an optional electric actuator, automation and process integration are further enhanced, improving workflow flexibility and safety in industrial environments.

Built for Harsh Conditions

Constructed from cast iron or aluminum with Nitrile/EPDM seals, the valve stands up to rigorous industrial demands. IP54 weatherproof protection and a wide operating temperature range ensure reliable performance both indoors and outdoors, regardless of climate or humidity.

FAQ's of Preset Valve For Flowmeter:

Q: How does the preset shut-off function work on this valve?

A: The preset shut-off valve is programmed to automatically cut flow at a user-defined volume. As the fluid reaches the selected preset value, the valve mechanically closes, ensuring precise delivery without manual intervention.

Q: What is the main benefit of using a mechanical counter display on this preset valve?

A: The mechanical counter display provides immediate, clear, and reliable volume readings, even in environments where electronic displays might not be feasible or where power sources are limited.

Q: When should routine maintenance be performed on this valve?

A: Routine maintenance-such as periodic checks for wear on seals and moving parts-is recommended at least annually, or as per site operating conditions, to ensure the valve maintains its service life of over 5 years.

Q: Where can this preset valve be installed?

A: The valve is suitable for installation in oil terminals, petroleum processing plants, transport depots, and any setting requiring accurate, heavy-duty liquid measurement and control. It can be mounted via flange or threaded connections per your pipeline specifications.

Q: What types of media can the preset valve handle?

A: This valve is compatible with oil, diesel, petroleum, and other non-corrosive liquids, making it versatile for a wide range of industrial applications.

Q: How does the valve support automated industrial processes?

A: The valve offers an optional electric actuator interface for integration into automated systems, while also supporting mechanical operation. This enables seamless process automation and remote control capabilities.

Q: What makes the device reliable for long-term industrial use?

A: With a high mechanical stability design, robust metal housing, weatherproof rating, and low maintenance needs, this preset valve is engineered for sustained accuracy and durability in demanding industrial environments.
