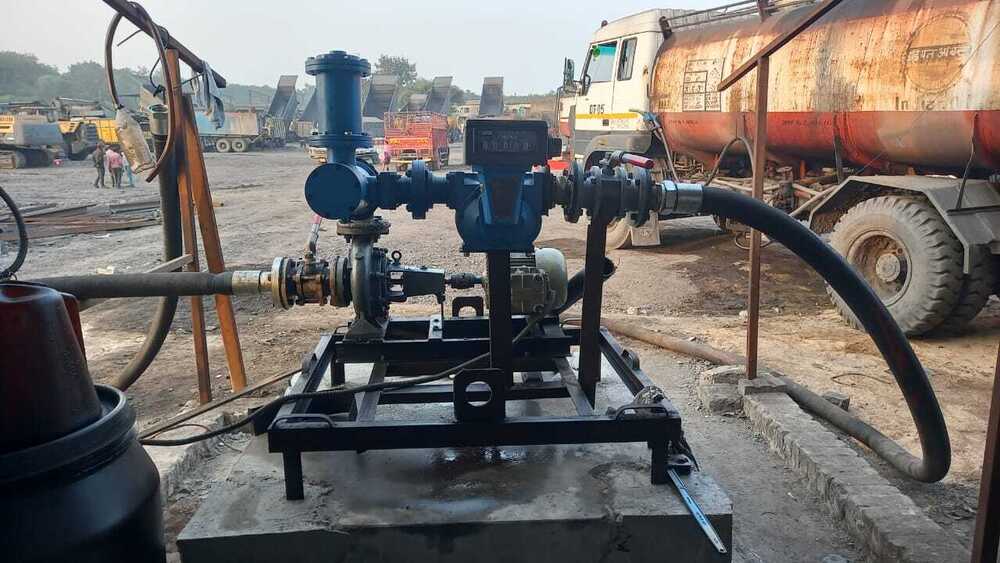

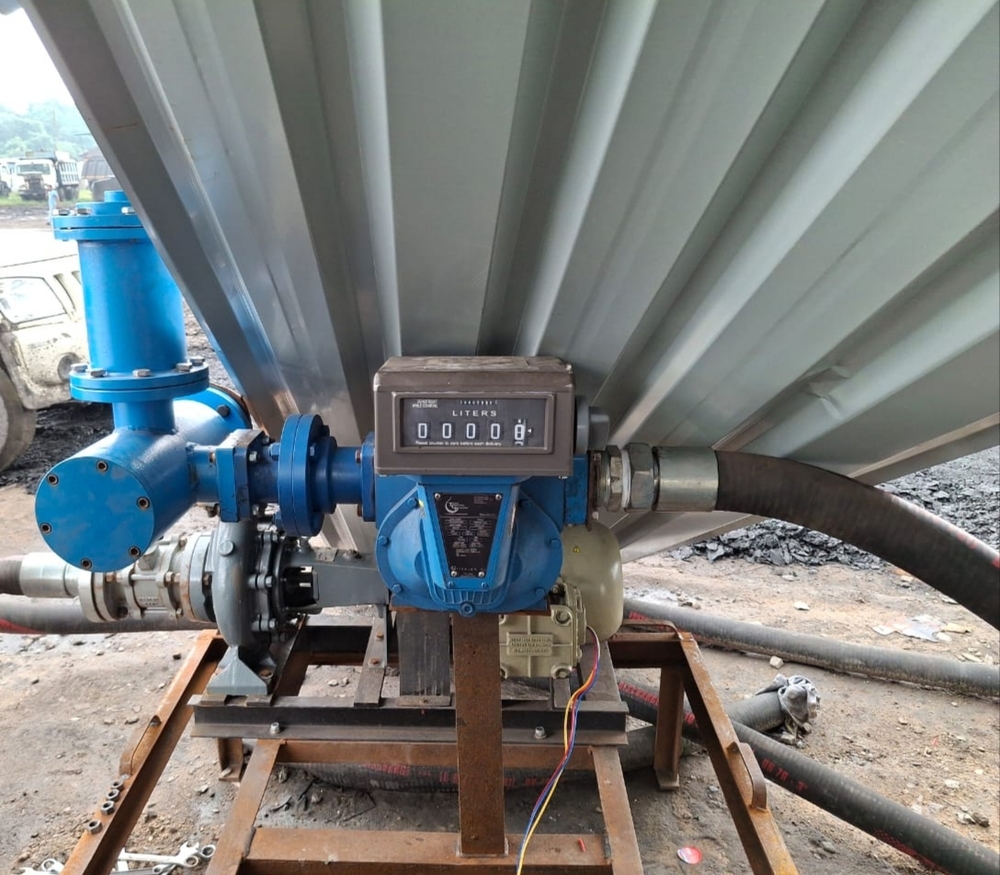

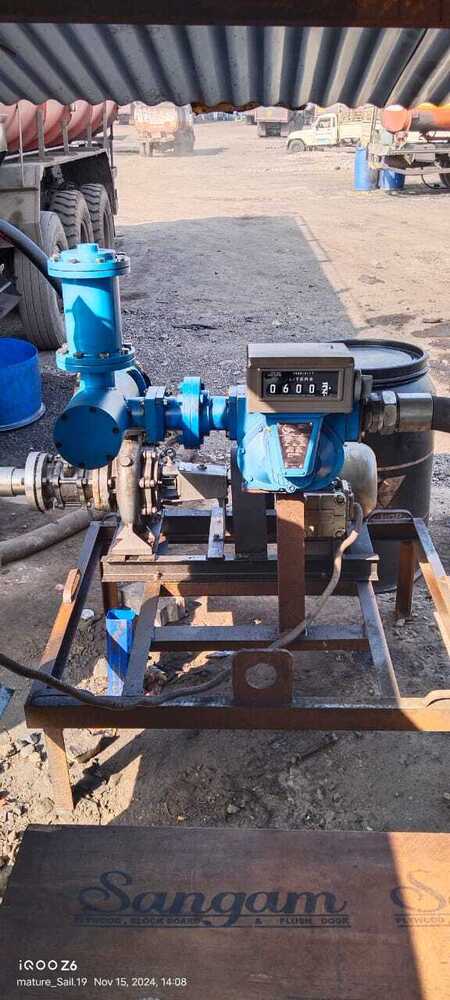

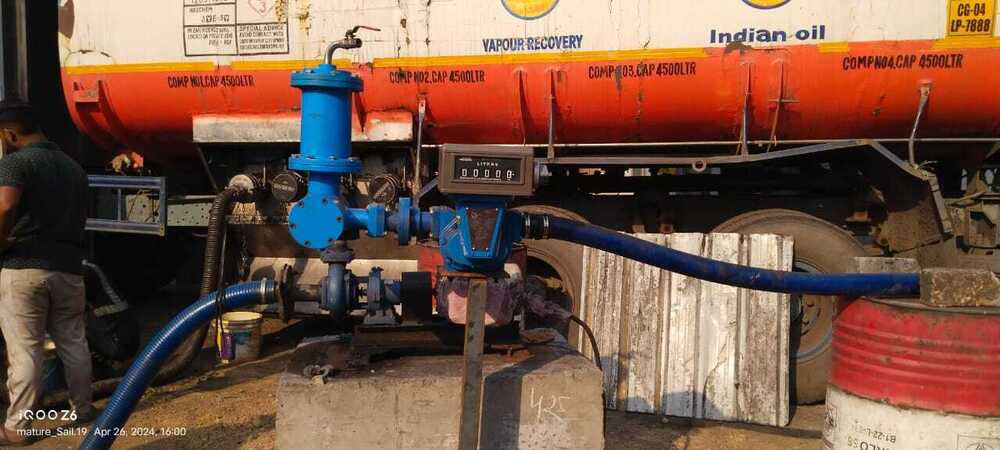

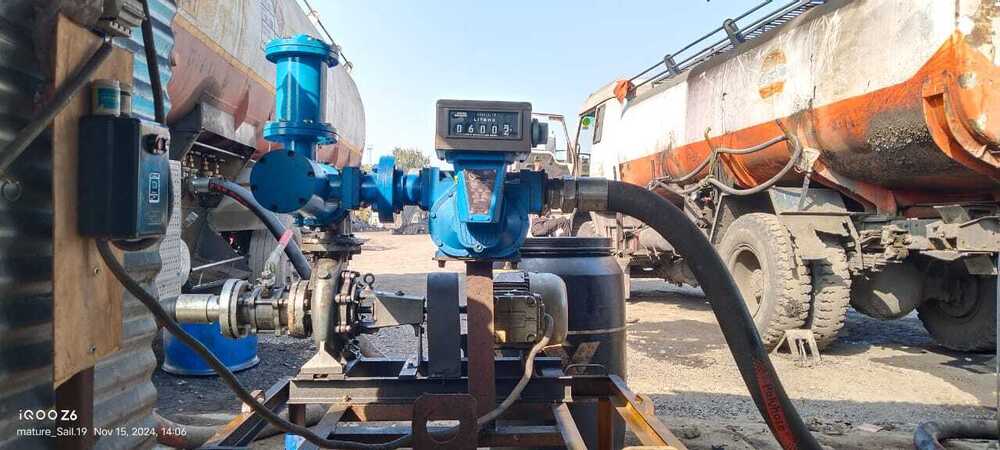

Flowmeter for Tanker Unloading

Name: Flowmeter for Tanker Unloading
Brand: MARS PRODUCTS & SERVICES
Price: 550000 INR
Availability: InStock

Price 550000 INR/ Liter

Get a Price/Quote

MOQ : 1 Liter

Flowmeter for Tanker Unloading Specification

Current Range
4-20 mA (optional)

Response Time
Instantaneous

Application Media
Diesel, Oil, Water, Chemicals

Load Capacity
Suitable for bulk tanker unloading

Storage Temperature
-20C to 80C

Signal Type
Mechanical / Electronic (optional)

Pressure Range
1-16 bar

Measuring Units
Liters / Kiloliters / Gallons

Sensitivity
High

Temperature Range
-10C to 60C

Connecting Type
Threaded / Flanged

Resolution
0.1 Liter

Language
English

Cut Size
Customizable

Frequency
Mechanical Counting / Pulse (Optional)

Protection
Weatherproof Enclosure

Length
Varies as per tank connection

Connectivity Type
Wired

Stability
High repeatability

Output
Pulse / 4-20 mA (optional)

Axis Type
Horizontal

Process Connection
ANSI Flange / BSP Thread

Dimension (L*W*H)
500 mm x 300 mm x 450 mm (typical)

Sensor Type
Turbine / Positive Displacement

Housing Material
Corrosion-resistant metal

Color
Blue / Silver

Operating Temperature
-10C to 60C

Mounting
Flange / Inline

Diameter
2 / 50mm / Custom sizes available

Capacity
Up to 100,000 liters/batch

Model
FM-TU Series

Measurement Range
10-100,000 liters

Flow Rate
10-40 m3/hr

Material
Cast Iron / Stainless Steel / Aluminum

Power Supply
230V AC / 24V DC

Power Consumption
Less than 10W

Accuracy
0.5% of reading

Display Type
Mechanical Counter

Range
Up to 99999 liters

Ingress Protection Rating
IP65

Equipment Type
Flowmeter for Tanker Unloading

Maintenance
Minimal, easy to clean

Pulse Output Frequency
Up to 100 Hz

Power Indicator
LED

Repeatability
0.2%

Calibration
Factory Calibrated with Field Calibration Option

Flow Direction
Uni-directional / Bi-directional (optional)

About Flowmeter for Tanker Unloading

This digital fuel flow meter is designed for accurate, reliable measurement of fuel liquids (diesel, petrol, kerosene, light oils) in industrial, commercial and agricultural applications. The unit features a robust turbine/rotor mechanism, microprocessor based electronics, and a clear digital LCD display for real time flow rate and cumulative total.
It is ideal for fuel loading/unloading, generator fuel usage tracking, diesel dispensers, tank truck metering, and other fluid flow monitoring.

Reliable Measurement for High-Volume Unloading

The FM-TU Series Flowmeter is purpose-built for accurate and rapid tanker unloading of bulk liquids. Its high repeatability, wide measurement range, and instant response time enable efficient bulk transfer processes with minimal manual intervention. The meter's robust construction and weatherproof design provide protection and long-term durability even in challenging conditions, ensuring consistent operational efficiency for distributors, suppliers, and service providers alike.

Easy Operation and Maintenance

With an intuitive mechanical counter and bright LED power indicator, the FM-TU Series is easy to use. Minimal maintenance is required due to its straightforward design and corrosion-resistant housing. If recalibration is needed, field options are available alongside factory calibration. The flowmeter can be mounted using standard threaded or flanged connections, making installation and removal efficient. Cleaning is convenient, further reducing equipment downtime.

FAQ's of Flowmeter for Tanker Unloading:

Q: How is the FM-TU Series flowmeter installed for tanker unloading operations?

A: The FM-TU Series flowmeter is typically mounted inline or via flanged connections, fitting standard tank openings. Depending on your site's configuration, ANSI flange or BSP threaded connections can be used. The device supports both horizontal axis mounting and custom cut sizes to match your tank setup.

Q: What media can be measured with this flowmeter and what is its measurement range?

A: This flowmeter accurately measures diesel, oil, water, and various chemicals. It can handle large batch volumes, supporting measurements ranging from 10 liters up to 100,000 liters, with a mechanical counter displaying up to 99,999 liters per transaction and a resolution of 0.1 liter.

Q: When is recalibration required and how is it performed?

A: The FM-TU Series is factory calibrated for immediate use. However, you may perform field calibration if your process specifications change or routine verification indicates a shift in accuracy. Field calibration procedures are straightforward and ensure ongoing precision in bulk fluid handling.

Q: Where can the flowmeter be used with respect to environmental conditions?

A: Thanks to its IP65 rating and weatherproof enclosure, the flowmeter can be used both outdoors and indoors in demanding tanker unloading environments across India. Its operation spans ambient temperatures from -10C to 60C, with storage tolerances from -20C to 80C.

Q: What are the main benefits of using this flowmeter for bulk tanker unloading?

A: Key benefits include high measurement accuracy and repeatability, reduced maintenance due to robust, corrosion-resistant construction, and flexibility in media handled. Its instant response time and clear mechanical display support efficient bulk unloading, helping operators save time and avoid costly errors.

Q: How does the output and connectivity work with on-site monitoring systems?

A: The flowmeter offers both mechanical counter display and electronic output (pulse up to 100 Hz, optional 4-20 mA signal). It is compatible with wired connectivity, allowing integration with local or centralized monitoring systems for automated data logging and process control.
