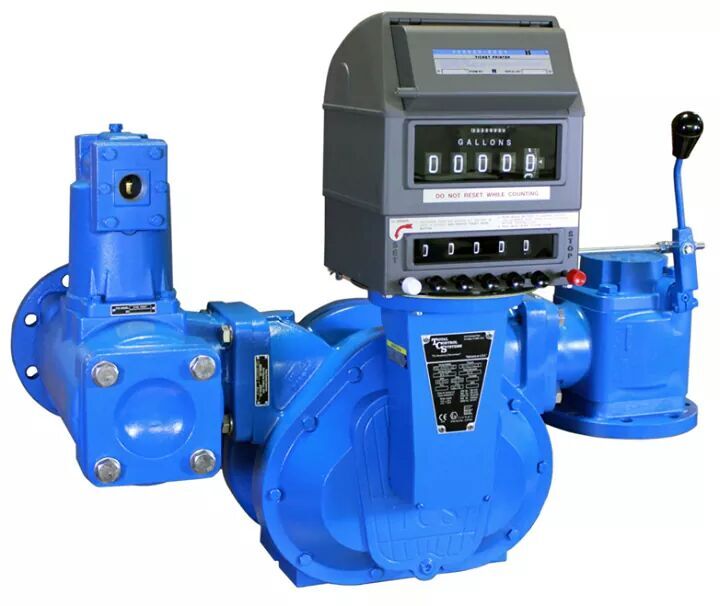

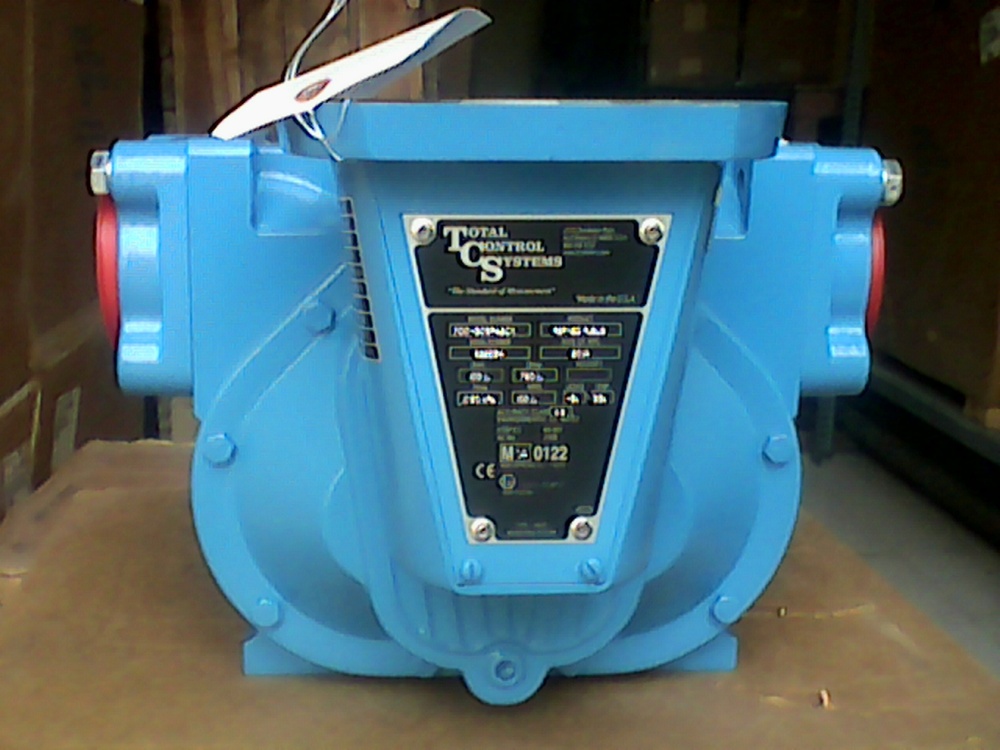

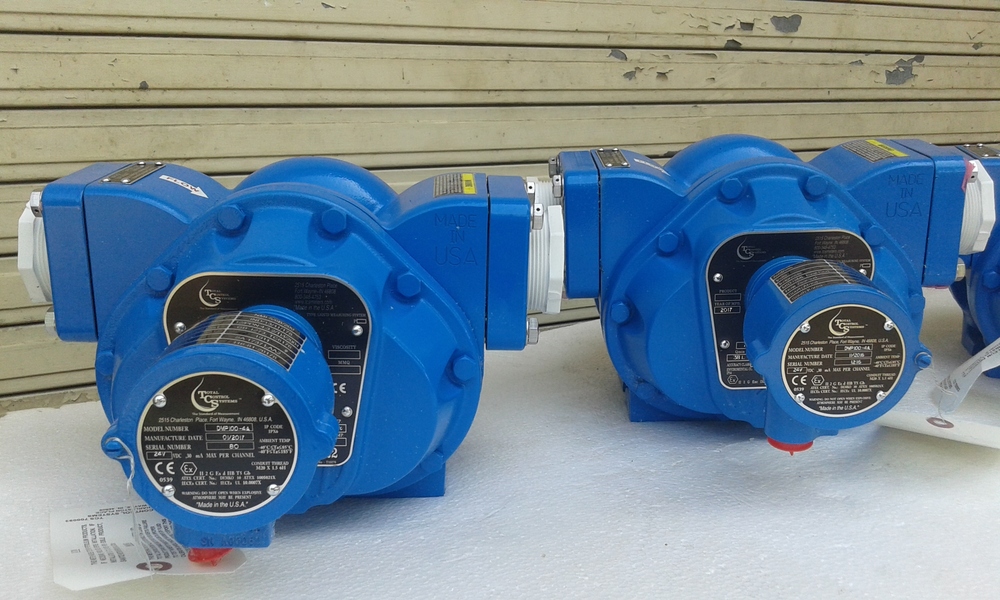

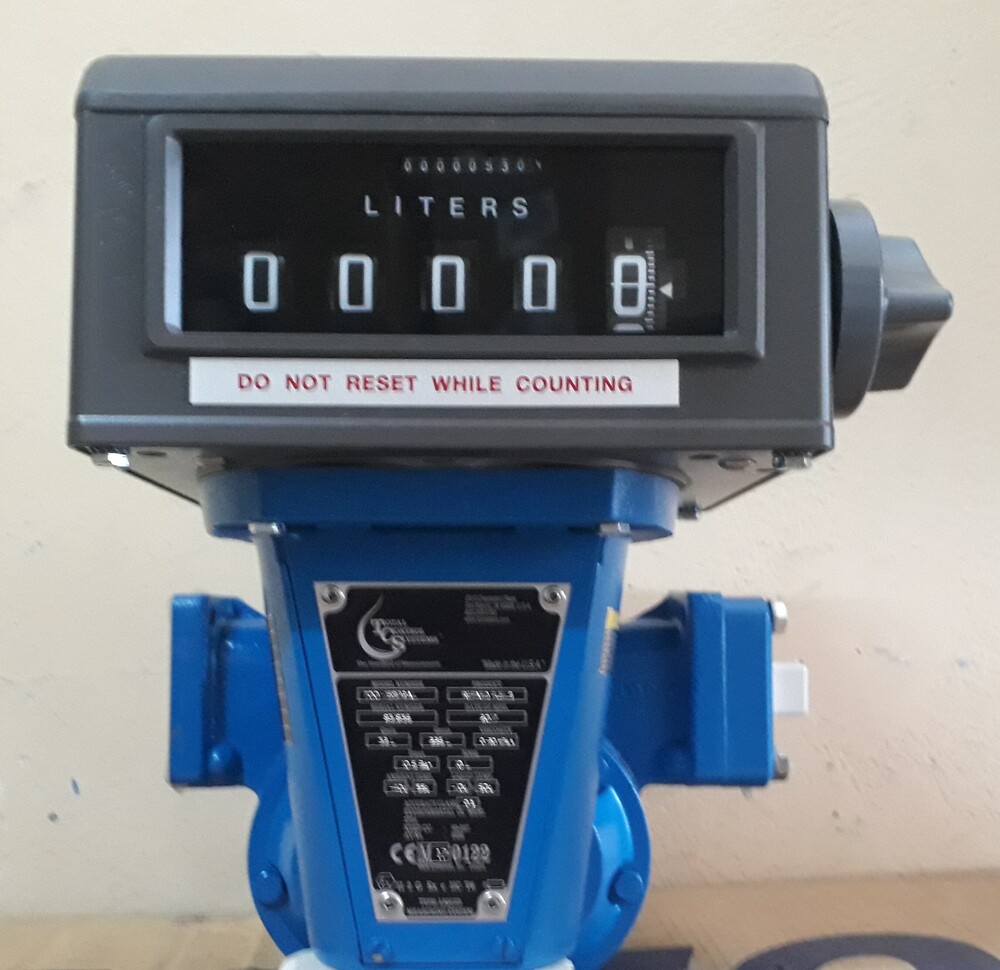

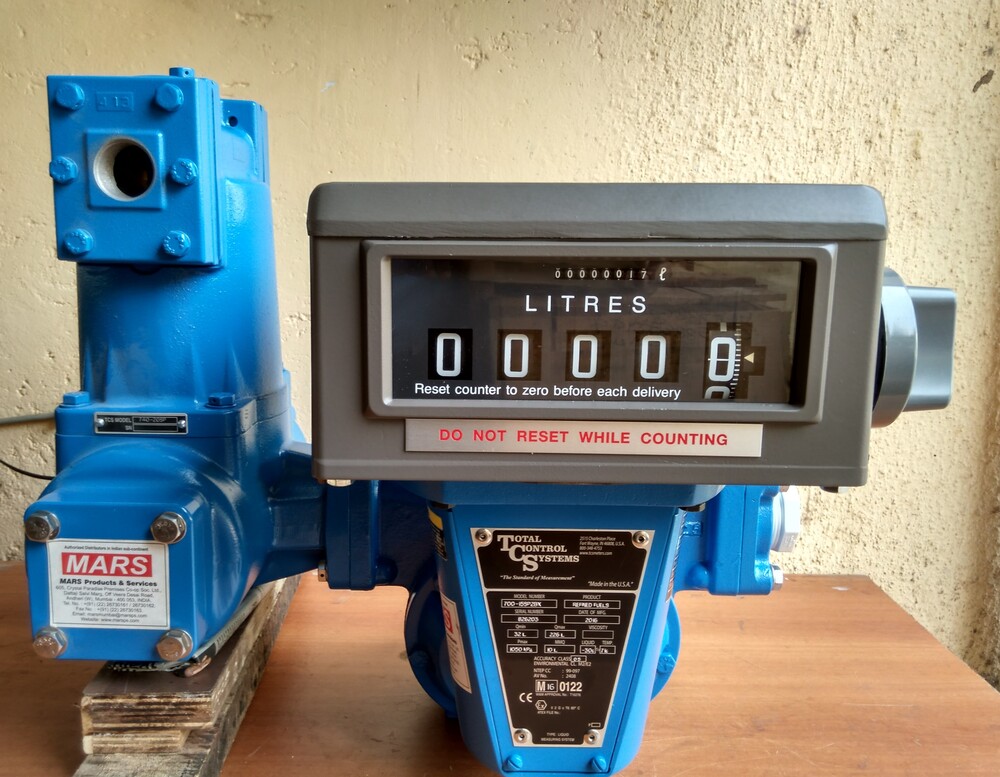

Tri Rotor Flowmeter

Tri-rotor flowmeters, also known as triple-rotor flowmeters or three-rotor flowmeters, are a type of positive displacement flowmeter used to measure the flow rate of liquids and gases. These flowmeters operate based on the rotation of three rotors within a chamber, providing highly accurate and reliable measurement of flow.

Hereïs a detailed description of Tri-Rotor Flowmeter products:

1. Working Principle

Tri-rotor flowmeters consist of three rotors that rotate within a cylindrical chamber as the fluid or gas passes through. Each rotor's movement is proportional to the volume of the fluid flowing through the meter. The rotation of the rotors drives a mechanical counter or a sensor that registers the amount of fluid passing through the meter. The system can provide both volume and flow rate measurements depending on the application.

2. Key Features

• High Accuracy: Tri-rotor flowmeters are known for their precision, often offering high levels of accuracy (ï0.5% of reading or better).

• Bidirectional Flow Measurement: These meters can measure flow in both directions, making them versatile in applications where flow reversal is possible.

• Wide Flow Range: Tri-rotor meters can measure a wide range of flow rates, making them suitable for various applications, from low to high flow rates.

• Low Maintenance: Due to their robust design, these meters typically require minimal maintenance and can handle a variety of liquids and gases.

• No External Power Source Required: Many models of tri-rotor flowmeters operate mechanically and do not require an external power source.

3. Applications

• Industrial Flow Measurement: Tri-rotor flowmeters are widely used in industries such as petrochemical, pharmaceutical, and food & beverage for accurate and reliable flow measurement.

• Water and Wastewater Treatment: These meters are used for monitoring water and effluent flow, ensuring optimal system performance.

• Oil and Gas: Used in oil, gas, and chemical industries for precise measurement of liquids and gases, even in hazardous environments.

• HVAC Systems: Tri-rotor meters are sometimes used to measure air and fluid flow in HVAC systems.

• Pulp and Paper Industry: For accurate liquid and slurry flow measurement.

4. Benefits

• Highly Accurate Measurement: These flowmeters provide accurate flow measurement over a wide range of fluid types and flow conditions.

• Compact Design: The tri-rotor flowmeter has a small footprint, making it ideal for applications with space constraints.

• Versatility: It works well with a wide range of liquids, gases, and slurries.

• Durability: Built to handle harsh industrial environments with a long lifespan and low wear-and-tear components.

5. Customization and Variants

Tri-rotor flowmeters come in different configurations to meet the needs of specific applications:

• Material Construction: These flowmeters are available in materials such as stainless steel, aluminum, or other corrosion-resistant materials, making them suitable for different process environments.

• Meter Size and Flow Range: Available in a range of sizes, tri-rotor flowmeters can handle very small to very large flow rates.

• Digital Output Options: Many modern tri-rotor flowmeters can be integrated with digital systems for remote monitoring and control, including options for pulse output, analog signals, or fieldbus communication (e.g., Modbus, HART).

6. Limitations

• Viscosity Sensitivity: Like other positive displacement meters, tri-rotor flowmeters can be sensitive to the viscosity of the fluid being measured. For fluids with high viscosity, the meter may require calibration or adjustments to ensure accurate readings.

• Limited to Certain Fluids: While they can handle most liquids and gases, some very dirty or abrasive fluids can wear the rotors over time.

7. Example Products

Here are a few popular types of tri-rotor flowmeters:

• Krohne OPTIMASS 6400: A high-precision, robust, and reliable flowmeter for both liquids and gases, widely used in chemical and petrochemical industries.

• FMC Technologies Tri-Rotor Flowmeter: Known for its high accuracy and versatility, used in industrial and high-volume applications.

• Brooks Instrument 5850E: A digital tri-rotor flowmeter designed for accurate measurement of low and medium flow rates, suitable for industrial use.

Conclusion

Tri-rotor flowmeters are a versatile and reliable choice for measuring flow in various industrial applications. They offer accuracy, durability, and flexibility for both liquid and gas flow measurement. Their design makes them a preferred option in industries requiring precise flow monitoring.
