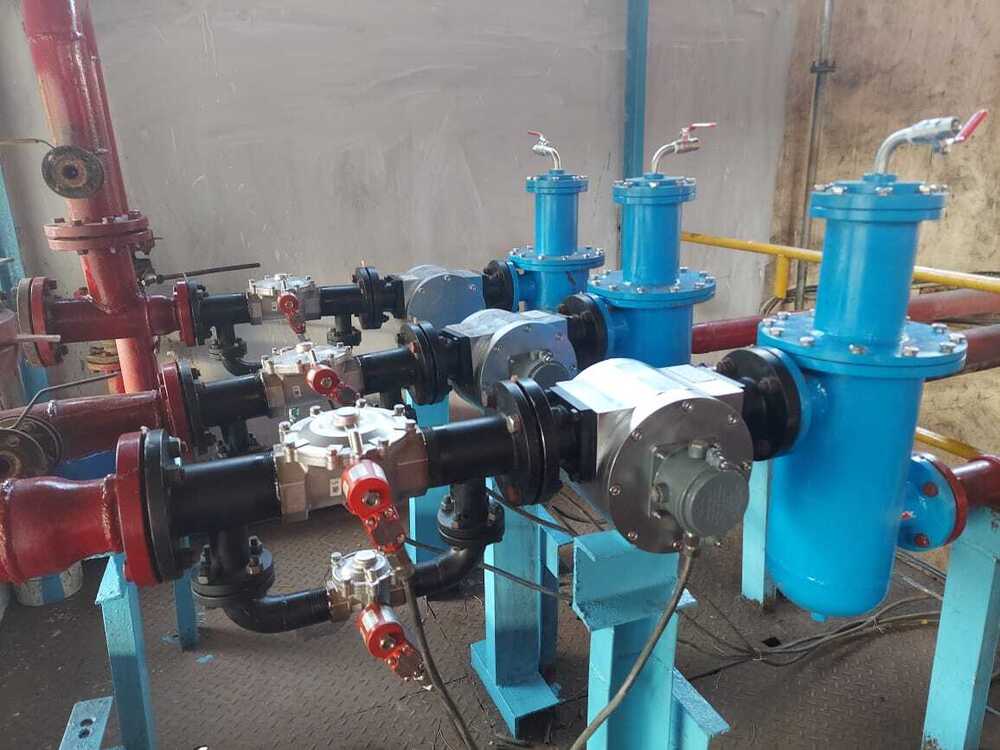

Oval Gear Type Flowmeter

Name: Oval Gear Type Flowmeter
Brand: MARS PRODUCTS & SERVICES
Price: 450000 INR
Availability: InStock

Price 450000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Oval Gear Type Flowmeter Specification

Connectivity Type
Wired

Resolution
High (0.1 L)

Humidity %
Up to 95% RH (Non-condensing)

Protection
IP65

Operating Temperature
-20C to +80C

Housing Material
Metal (Steel/Aluminum)

Output
4-20mA / Pulse / RS485

Flow Rate
0.1 to 1000 m3/h

Input
Standard electrical input

Connecting Type
Flange / Threaded

Application Media
Liquids (Oils, Water, Fuels)

Measuring Units
Litre, m3

Color
Blue / Silver / Black

Signal Type
Analog / Digital

Storage Temperature
-30C to +90C

Frequency
Up to 1000 Hz (Pulse Output)

Dimension (L*W*H)
Varies (According to DN size)

Language
English

Model
Oval Gear Type Flowmeter

Response Time
<1s

Process Connection
ANSI/DIN Flange, Thread

Connector
Cable Gland / Terminal Block

Sensitivity
High (smallest flow detected 0.1 L/min)

Stability
Excellent long-term stability

Pressure Range
Max 25 Bar (360 PSI)

Length
Depends on Model (e.g., 200mm - 450mm)

Measurement Range
0.1 to 1000 m3/h

Axis Type
Rotary

Diameter
DN15 to DN200

Velocity Range
0.3 to 6 m/s

Temperature Range
-20C to +80C

Mounting
Inline / Flange Mounting

Equipment Type
Positive Displacement Flowmeter

Capacity
Depends on Size

Sensor Type
Oval Gear Positive Displacement

Current Range
4-20mA

Material
Cast Iron / Stainless Steel / Aluminum

Power Supply
24V DC / 220V AC

Power Consumption
Low (<10W)

Accuracy
0.5% of reading

Display Type
Digital/Mechanical

Range
0.1 to 1000 m3/h

Application Industry
Oil & Gas, Chemical, Food & Beverage, Water Treatment

Power Supply Options
Battery powered available

Maintenance
Low, easy access flap for inspection

Installation Type
Horizontal/Vertical

Repeatability
0.03%

Service Life
>10 years

Calibration
Factory calibrated with traceable certificate

Viscosity Range
Up to 1000 cP

Compliance
Meets ISO 9001:2015

Pulse Output Type
Open collector / Reed switch

About Oval Gear Type Flowmeter

Unlock rarefied precision with the Oval Gear Type Flowmeter-your elite, first-string choice for accurate flow measurement in demanding industries such as Oil & Gas, Chemical, Food & Beverage, and Water Treatment. Designed for fresh performance, it boasts high repeatability (0.03%), broad viscosity compatibility (up to 1000 cP), and advanced power flexibility (battery, 24V DC, or 220V AC). Advance Purchase options guarantee you secure cutting-edge technology that's factory calibrated, ISO 9001:2015 compliant, and built for over 10 years of reliable, low-maintenance service.

Diverse Industrial Applications and Versatile Usage

The Oval Gear Type Flowmeter excels across multiple application surfaces, from processing viscous oils to fuel management and water metering. Its robust inline or flange mounting suits both horizontal and vertical installations, making it adaptable for diverse type of usage in industrial, commercial, and even laboratory environments. Whether measuring corrosive chemicals or tracking batch flows in beverage production, its precision and durability make it suitable for specialized as well as routine fluid handling tasks.

Domestic Market, Certification Excellence, and Export Facilities

In the Indian domestic market, the Oval Gear Flowmeter is considered a high market value solution, preferred for its robustness and global certifications such as ISO 9001:2015. Our proposal amount and rate reflect the value provided by advanced engineering and traceable calibration. We cater to distributor, exporter, importer, service provider, supplier, and trader networks, operating through major FOB ports such as Mumbai and Chennai for prompt international and domestic deliveries.

FAQ's of Oval Gear Type Flowmeter:

Q: How does the Oval Gear Type Flowmeter ensure precise flow measurement in various industries?

A: The Oval Gear Type Flowmeter utilizes positive displacement with rotary oval gears, enabling high repeatability of 0.03% and accuracy within 0.5% of the reading, regardless of fluid viscosity or flow profile, making it ideal for oil, chemicals, beverages, and water.

Q: What is the process for installing and maintaining this flowmeter?

A: Installation is streamlined with compatibility for horizontal or vertical mounting and flexible connections (flanged or threaded). Maintenance is simple and infrequent due to an easy access flap for inspection and highly durable internal components, ensuring low service requirements over its extended lifespan.

Q: When should I choose this flowmeter over alternative models?

A: Select the Oval Gear Type Flowmeter when you require high stability, a wide viscosity range, factory calibration, and exceptional repeatability, particularly for demanding industrial applications or situations requiring both digital and mechanical display options.

Q: Where can this flowmeter be applied besides oil and chemical industries?

A: Beyond oil and chemical sectors, the flowmeter can be deployed in food and beverage processing, water treatment, laboratory fluid measurement, and any setting requiring accurate measurement of liquids such as oils, fuels, and water.

Q: What are the primary benefits of advance purchase for this flowmeter?

A: Advance Purchase lets you reserve rarefied technology, secure priority delivery, and receive factory-calibrated units complete with ISO certification-ideal for planning large-scale projects or meeting compliance deadlines with an elite measurement solution.
