Pulse Transmitter for PD Flowmeter

Name: Pulse Transmitter for PD Flowmeter
Brand: MARS PRODUCTS & SERVICES
Price: 15000 INR
Availability: InStock

Price 15000 INR/ Liter

Get a Price/Quote

MOQ : 1 Liter

Pulse Transmitter for PD Flowmeter Specification

Sensitivity
Industrial standard

Color
Blue (Standard)

Flow Rate
Flowmeter dependent

Connector
Screw Terminal

Stability
High, industrial standard

Dimension (L*W*H)
Depends on flowmeter size

Capacity
Up to 100,000 pulses/hr

Operating Temperature
-10C to +60C

Response Time
1 ms

Storage Temperature
-20C to +80C

Application Media
Oil, Diesel, Fuel, Water, Other Liquids

Output
Open Collector / Reed Switch / Potential Free Contact

Protection
IP65

Equipment Type
Pulse Transmitter

Connectivity Type
Cable gland terminal block

Load Capacity
Up to 500 Ohm

Process Connection
Standard flange or threaded as per PD Flowmeter

Housing Material
Aluminium / Stainless Steel

Cut Size
Application dependent

Diameter
25 mm, 40 mm, 50 mm, 80 mm, 100 mm, 150 mm (as per PD Flowmeter)

Connecting Type
Flange/Threaded

Sensor Type
Magnetic / Reed Switch

Mounting
Direct to Flowmeter

Length
As per flowmeter

Measuring Units
Pulses / Liter

Signal Type
Pulse

Frequency
Up to 200 Hz

Input
Mechanical motion from flowmeter

Language
English

Velocity Range
Flowmeter dependent

Pressure Range
Flowmeter dependent

Current Range
Max 250 mA output circuit

Measurement Range
Flow dependant

Temperature Range
-10C to +60C

Humidity %
0-95% RH (Non-condensing)

Model
Pulse Transmitter for PD Flowmeter

Resolution
High (flowmeter dependent)

Material
Aluminium / Stainless Steel

Power Supply
24 VDC / 220 VAC

Power Consumption
2W

Accuracy
0.2% of reading

Display Type
No local display

Range
According to flowmeter model

Compliance
RoHS Compliant

Recommended Cable
Shielded 3-core cable

Applicable Standards
IS/IEC standards

Weight
Approx. 2.5 kg

Pulse Output Current Max
250 mA

Wiring
2-wire / 3-wire connection supported

Explosion Proof
Optional flameproof model available

Ingress Protection
IP65 weatherproof housing

Tag Plate
Stainless Steel with engraved markings

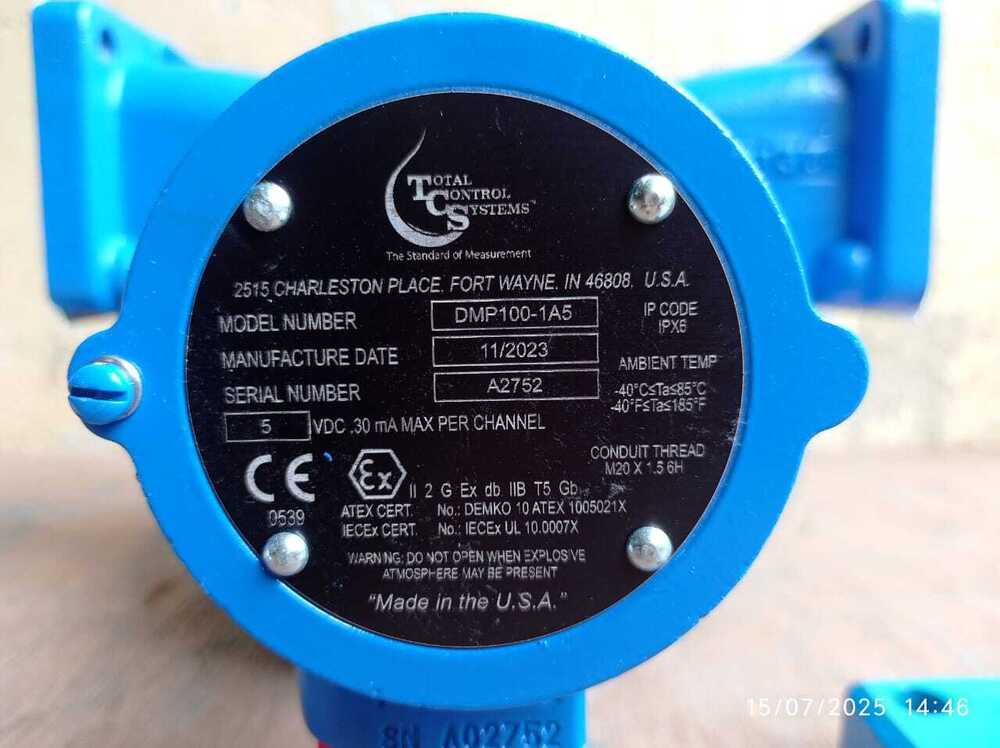

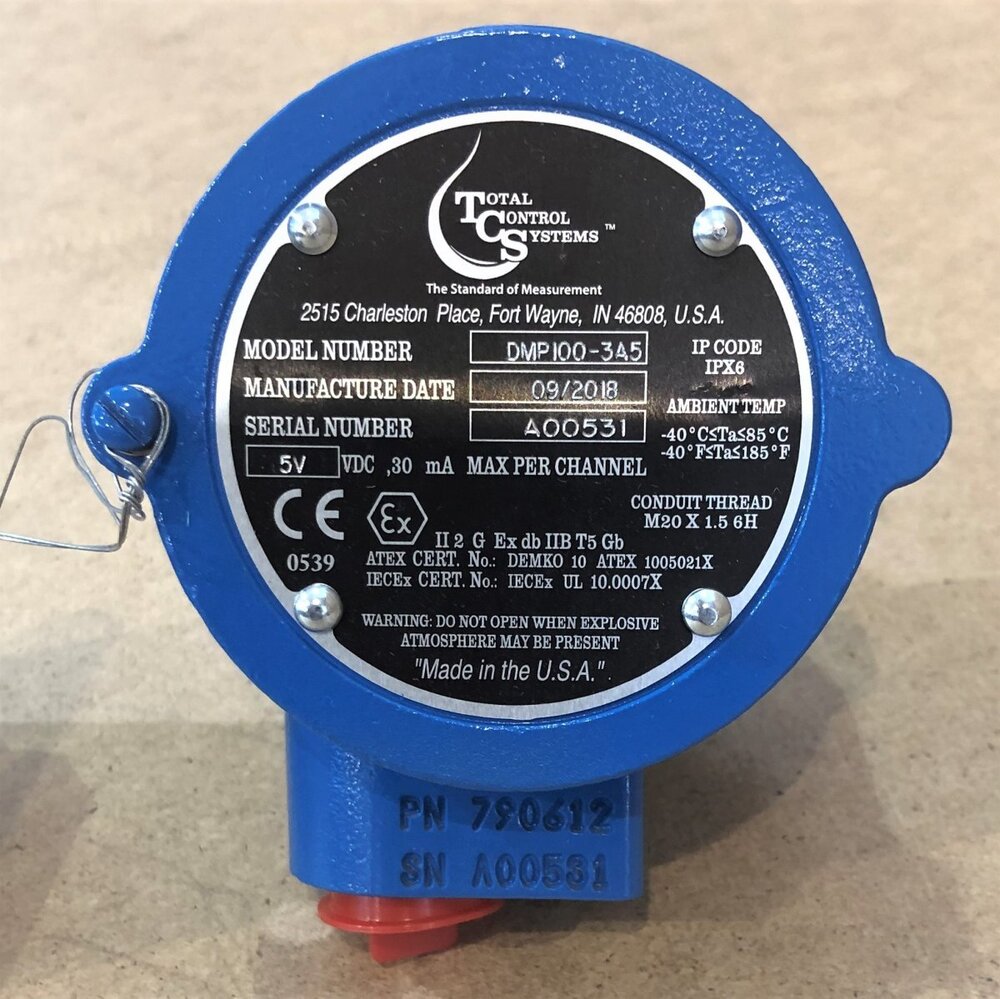

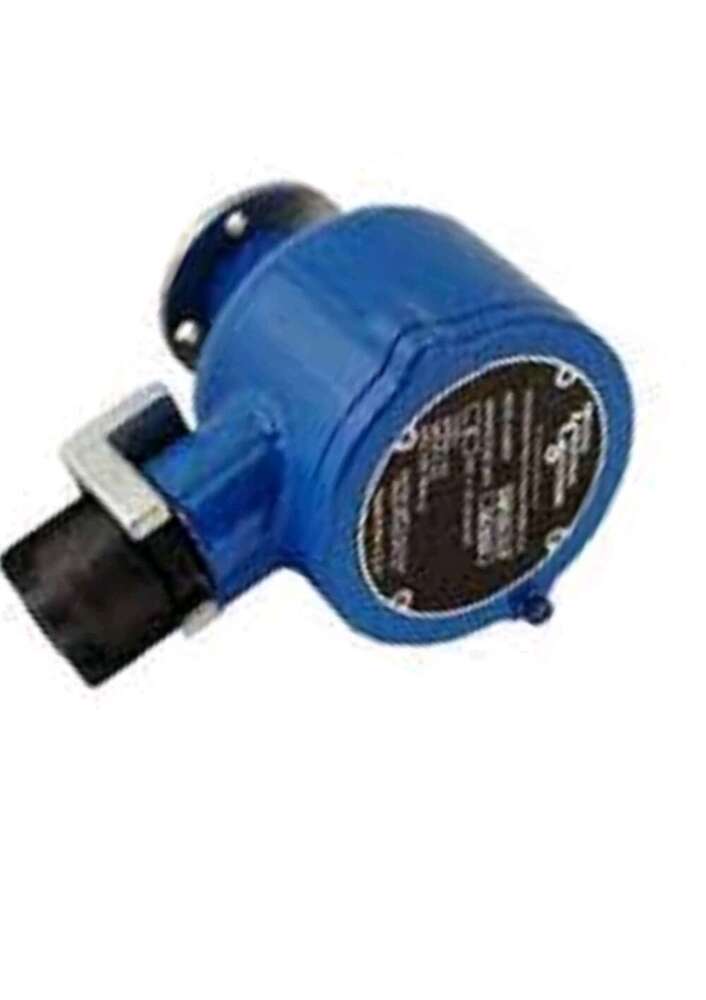

About Pulse Transmitter for PD Flowmeter

Pulse Transmitter For PD Flow Meter allow you to send volume data to a remote display, register, computer, or fuel management system (PLC). The glandless pulse transmitter can provide single or dual channel output.The DMP pulse transmitters provide accurate signals for remote indication, totalizers and data monitoring systems.

Rugged and Reliable Design

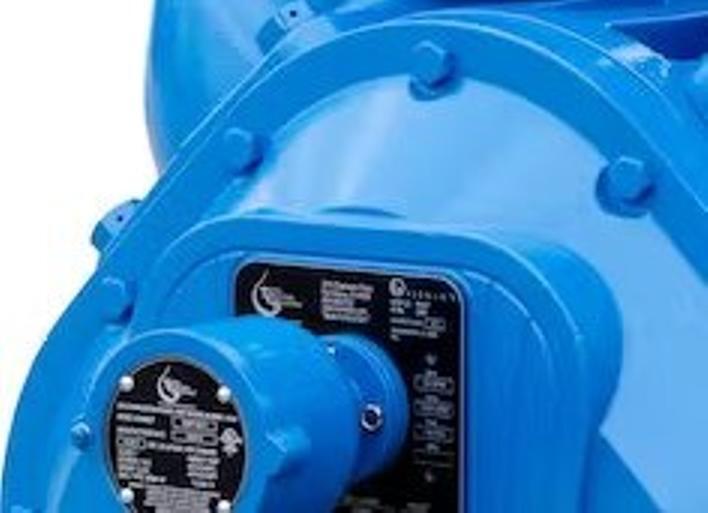

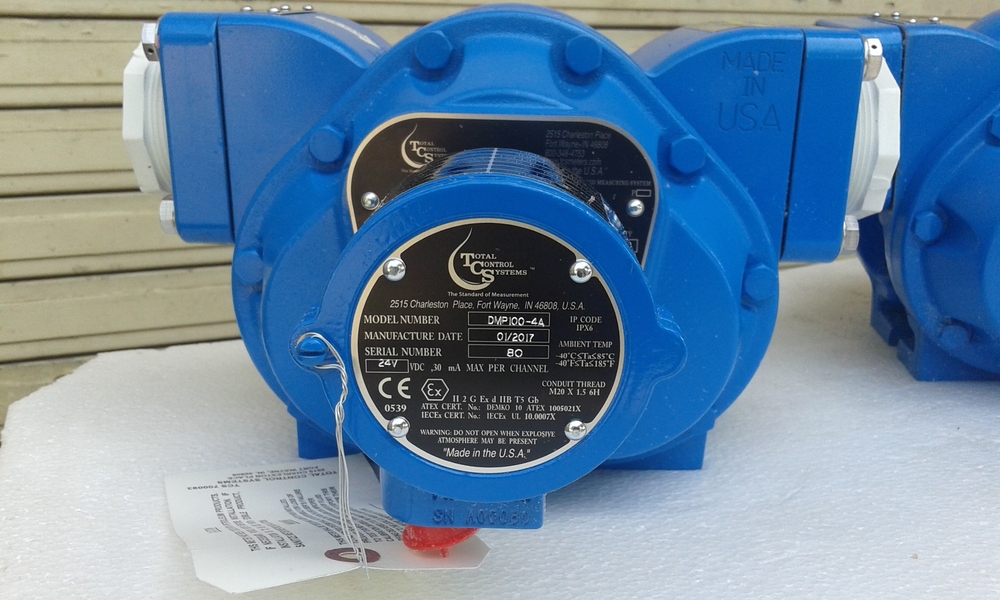

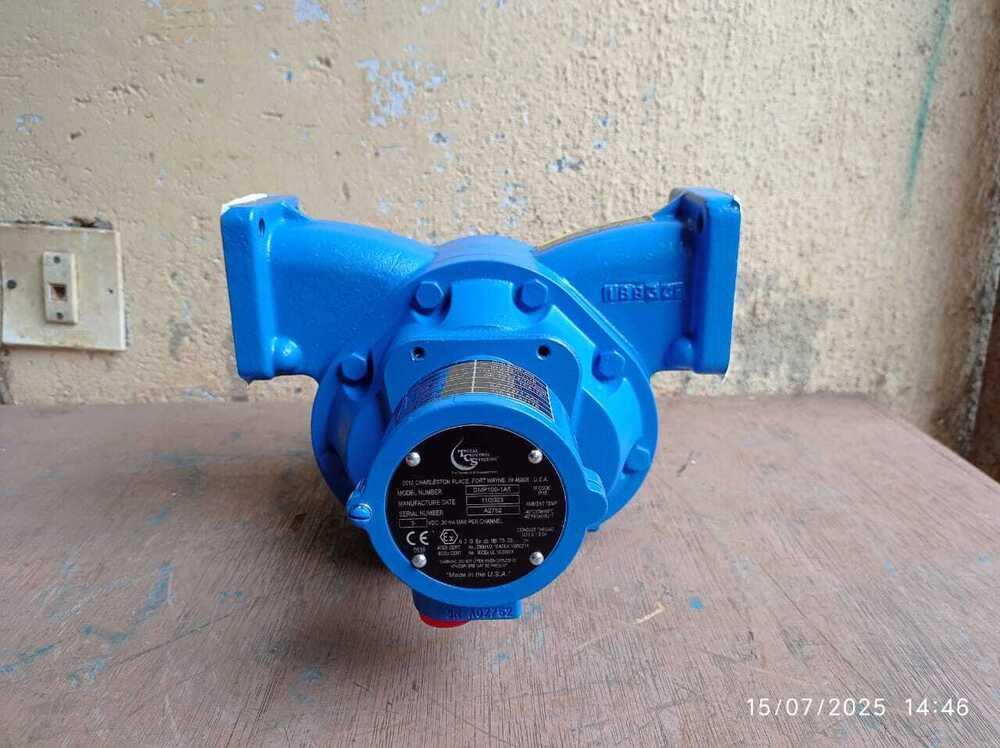

Engineered for industrial environments, this pulse transmitter features a robust aluminium or stainless steel IP65 housing to ensure resilience against dust, water, and tough weather conditions. Optional explosion-proof versions are available for hazardous locations, and the device can be directly mounted on positive displacement (PD) flowmeters of various diameters-from 25 mm to 150 mm.

Accurate and Versatile Performance

Delivering up to 0.2% reading accuracy, this pulse transmitter supports a maximum pulse output current of 250 mA and up to 100,000 pulses per hour. Its pulse output options (open collector, reed switch, or potential-free contact) facilitate flexible integration into process automation and remote monitoring systems.

Flexible Installation and Operation

The transmitter easily connects via standard flange or threaded mounts, using cable gland terminal blocks for secure wiring. Designed for reliability, it operates effectively across a temperature range of -10C to +60C and a humidity range of 0-95% RH (non-condensing), ensuring performance stability in diverse industrial settings.

FAQ's of Pulse Transmitter for PD Flowmeter:

Q: How does the pulse transmitter integrate with a PD flowmeter system?

A: The pulse transmitter is mounted directly onto the PD flowmeter via standard flange or threaded connections. It detects mechanical motion from the flowmeter and converts it into electrical pulses, which can then be transmitted to external monitoring or control equipment using a shielded 3-core cable.

Q: What types of media can this pulse transmitter measure flow for?

A: This transmitter is suitable for measuring the flow of oil, diesel, fuel, water, and other compatible liquids, making it versatile for various industrial applications.

Q: When should the explosion-proof (flameproof) model be chosen?

A: Choose the explosion-proof version when installing the transmitter in hazardous or potentially explosive areas that require compliance with IS/IEC safety standards, ensuring the highest levels of operational safety.

Q: Where can this pulse transmitter be installed?

A: The device is designed for installation in indoor or outdoor industrial environments, thanks to its IP65 weatherproof housing. It can be mounted directly on the PD flowmeter at the process site, in zones where durability and protection against dust and water ingress are essential.

Q: What is the wiring configuration required for this device?

A: The transmitter supports both 2-wire and 3-wire wiring configurations. It is recommended to use a shielded 3-core cable to ensure signal integrity and reduce electrical noise during operation.

Q: How is power supplied to the pulse transmitter?

A: Depending on your requirements, power can be supplied either by 24 VDC or 220 VAC sources. The transmitter's power consumption is low at just 2W, enhancing energy efficiency during operation.

Q: What are the key benefits of using this pulse transmitter in flow measurement applications?

A: Key benefits include high measurement accuracy, robust industrial housing, reliable pulse output for process automation, compliance with RoHS and IS/IEC standards, and flexible installation options-ensuring dependable and efficient flow monitoring in demanding industrial environments.
